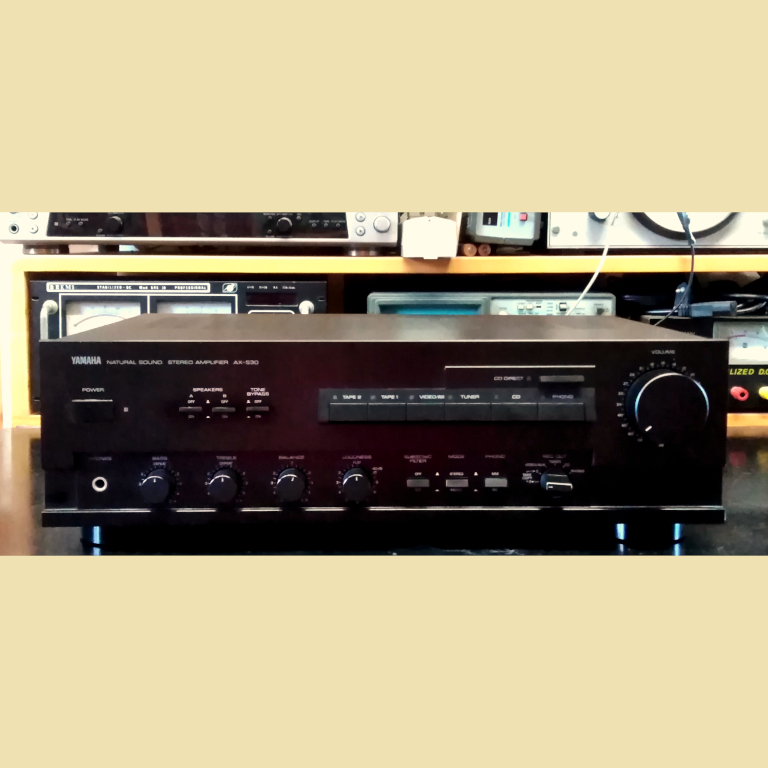

Yamaha AX-530

Repair

Japan 1989

Power 85 W 8 Ohms
Power 100 W 6 Ohms
Bandwidth 10 Hz - 50 kHz
Damping factor 80 8 Ohms
Phono MC input sensitivity 0.16 mV 200 Ohms (max 10 mV)
Phono input sensitivity MM 2.5 mV 47 kOhms (max 150 mV)
Sensitivity of line inputs 150 mV 47 kOhms
Frequency response 20Hz - 20kHz ± 0.5dB
Total harmonic distortion pre MC 0.007%
Total harmonic distortion pre MM 0.003%
Total harmonic distortion in power 0.01%
Intermodulation distortion 0.01%
Phono signal noise ratio MC 76 dB
MM phono signal noise ratio 92 dB
Line noise signal ratio 102 dB
60 dB separation
Bass tone control ± 10 dB at 20 Hz (350 Hz)
Treble control ± 10 dB at 20 kHz (3.5 kHz)
Filtro subsonico 15 Hz 12 dB/oct
