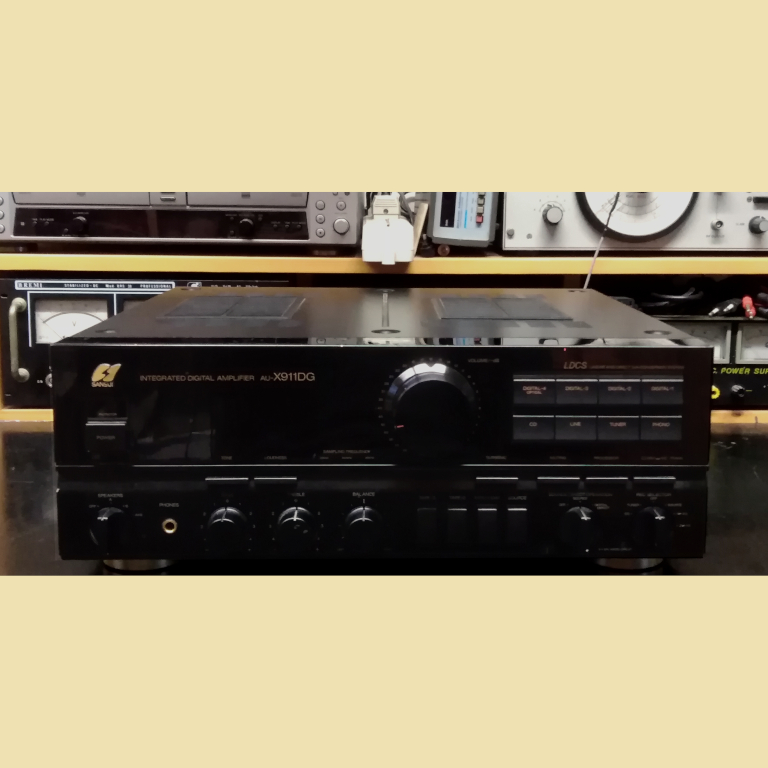

Sansui AU-X911DG

Repair

Japan 1989

Power: 100W 8 Ohms
Power: 120W 4 Ohms
Frequency Response (CD): DC - 200,000 Hz +0 dB -3 dB
Total harmonic distortion: 0.005%
Intermodulation dystrophy: 0.005%
MM phono input sensitivity: 2.5mV
MM phono input impedance: 47 kOhms
Phono MC input sensitivity: 0.3mV
MM phono input impedance: 100 Ohms
Line input sensitivity: 150 mV
Line Input Impedance: 47 kOhms
MM phono input signal noise ratio: 86 dB
Line Input Signal Noise Ratio: 110 dB
Bass tone control: ± 6 dB at 50 Hz
Treble control: ± 6 dB at 15 kHz
Filtro subsonico: -3 dB a 16 Hz 12 db/oct
Muting: -20 dB
Loudness +6 dB a 50 Hz / +3 dB a 10 kHz
