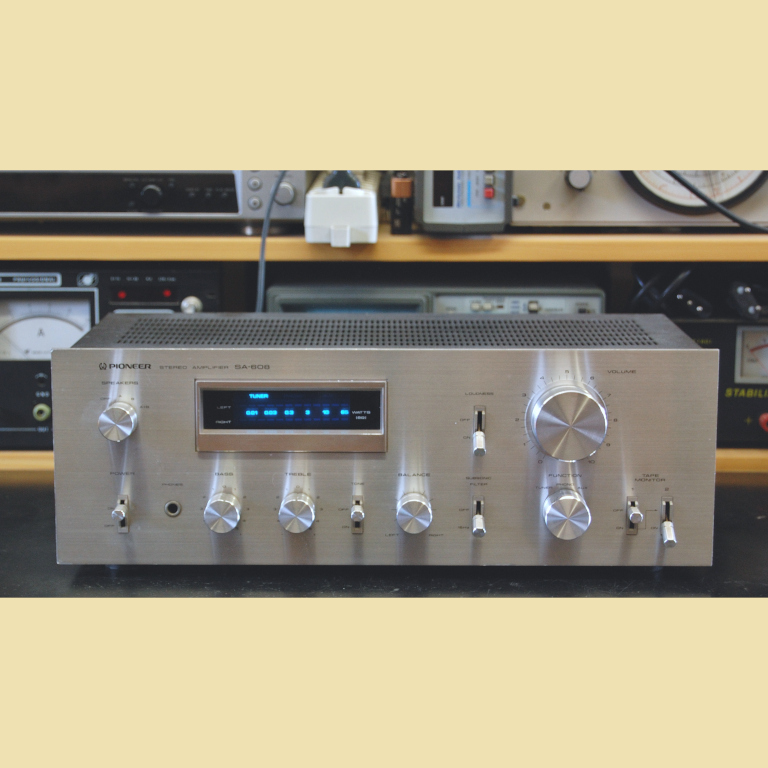

Pioneer SA 608

Repair

Japan 1976

Power 2 x 45 W
Total harmonic distortion 0.02%
Intermodulation distortion 0.02%
Damping factor 30 8 Ohms
Phono input sensitivity 2.5 mV (max 180 mV) 50 kOhms
Sensitivity of line inputs 150 mV 50 kOhms
Output level rec 150 mV
Line input frequency response +0 -1.5 dB 10Hz - 50 kHz
Phono input frequency response ± 0.3dB 30Hz - 15kHz
Bass tone control ± 7.5 dB at 100 Hz
Treble control ± 7.5 dB at 10 kHz
Filtro subsonico 15 Hz -6 dB/oct
Loudness +6 dB a 100 Hz, +3 dB a 10 kHz
Signal to noise ratio of phono input 78 dB
Signal to noise ratio of line inputs 100 dB
